Brand |
DOMA |
|---|---|
|
Manufacturer |
CHENGDU DOMA CARBIDE TOOLS CO.,LTD. |
|
Product Dimensions |
Standard or Customized |
|
Cutting Head Material |
Tungsten Carbide By Sinter-HIP |
|
Shank Material |
40Cr Steel |
|
Welding Method |
Silver-alloy Brazing |
|
Hot Selling Models |
E1016, E1220, SE-3, SE-5 |
|
OEM |
Available |
|
Free Sample |
Available |
|

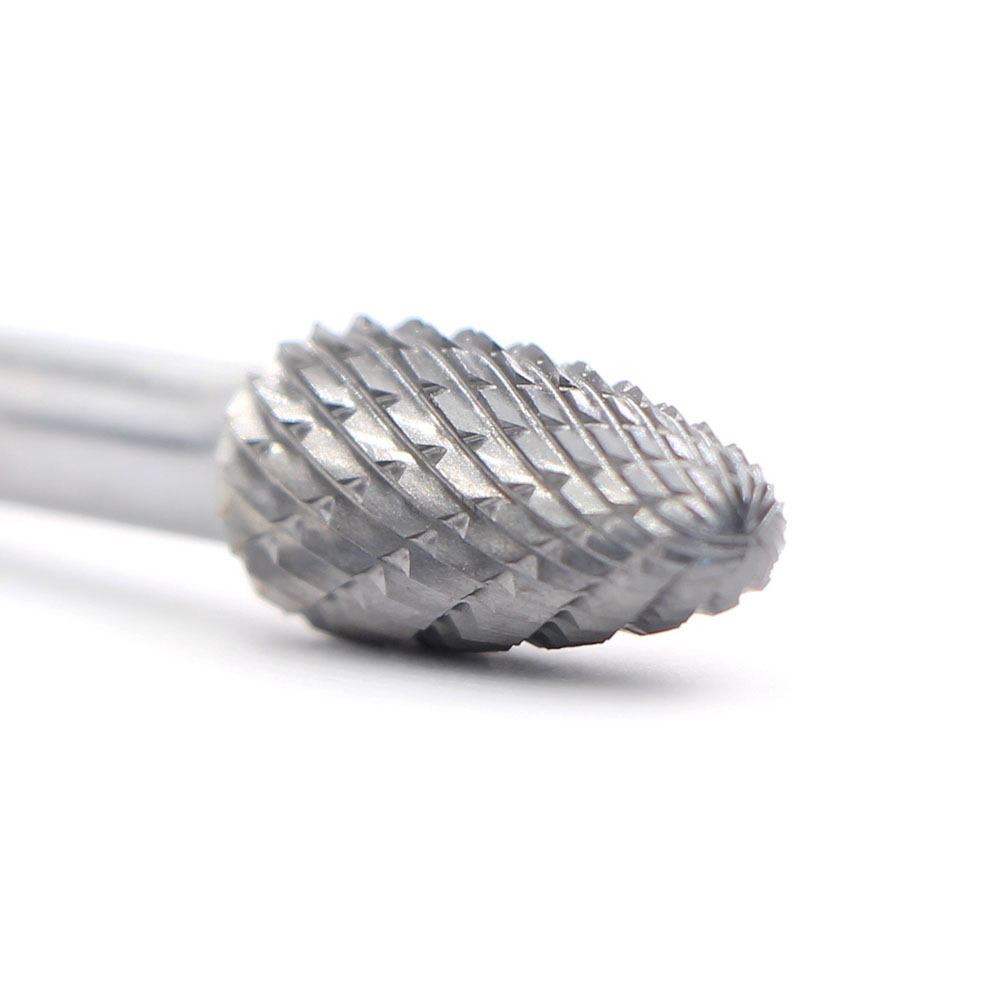

CARBIDE OVAL BURR |
|||||
|---|---|---|---|---|---|
|
Drawing |
Diagram of Application |
||||
|
|
|
||||
|
Metric Standard |
|||||
|
Shank Dia. (mm) |
Cutter Dia. (mm) |
Lgth. of Cut (mm) |
Overall Lgth. (mm) |
Tool No. |
The Combination of Head and Shank |
|
d2 |
d1 |
l2 |
l1 |
||
|
3 |
3 |
7 |
38 |
E0306 |
Solid |
|
5 |
8 |
46 |
E0508 |
Brazed |
|
|
6 |
10 |
48 |
E0610 |
Brazed |
|
|
6 |
6 |
10 |
50 |
E0610 |
Brazed |
|
8 |
13 |
58 |
E0813 |
Brazed |
|
|
10 |
16 |
61 |
E1016 |
Brazed |
|
|
12 |
20 |
65 |
E1220 |
Brazed |
|
|
16 |
25 |
70 |
E1625 |
Brazed |
|
|
19 |
25 |
70 |
E1925 |
Brazed |
|
|
8 |
12 |
20 |
65 |
E1220 |
Brazed |
|
16 |
25 |
70 |
E1625 |
Brazed |
|
|
19 |
25 |
70 |
E1925 |
Brazed |
|
|
Inch Standard |
|||||
|
Shank Dia. (inch) |
Cutter Dia. (inch) |
Lgth. of Cut (inch) |
Overall Lgth. (inch) |
Tool No. |
The Combination of Head and Shank |
|
d2 |
d1 |
l2 |
l1 |
||
|
1/8 |
3/16 |
9/32 |
1-1/2 |
SE-53 |
Solid |
|
1/4 |
3/8 |
1-8/9 |
SE-51 |
Brazed |
|
|
1/4 |
1/4 |
3/8 |
64.05mm |
SE-1 |
Brazed |
|
3/8 |
5/8 |
2-3/8 |
SE-3 |
Brazed |
|
|
1/2 |
7/8 |
2-5/8 |
SE-5 |
Brazed |
|
|
5/8 |
1 |
2-3/4 |
*SE-6 |
Brazed |
|
|
3/4 |
1 |
2-3/4 |
*SE-7 |
Brazed |
|
* If the carbide burr made by us breaks in normal use, we will double the compensation.
