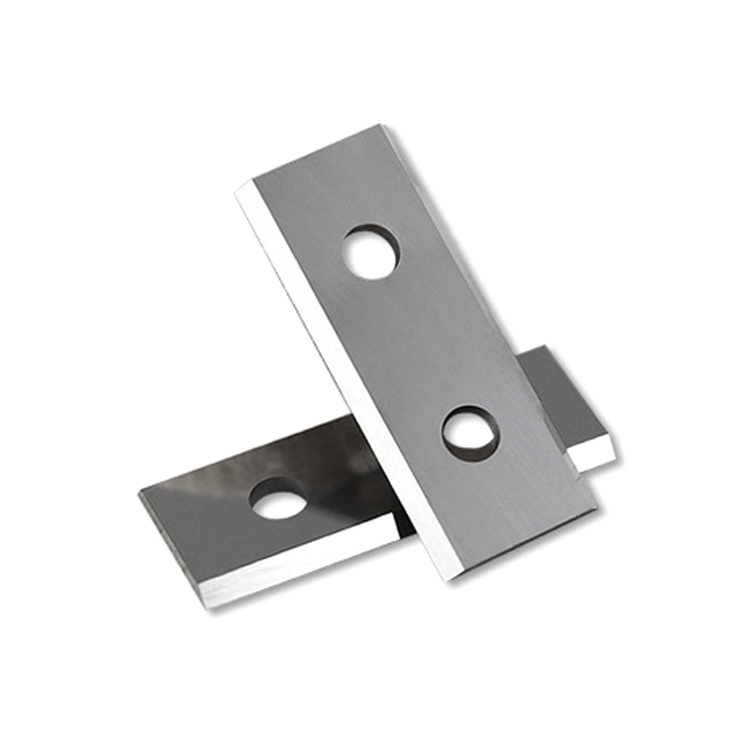

Woodworking Carbide Indexable Insert

Name: Woodworking Carbide Indexable Insert
Brand: High Performance Carbide Cutting Tools - DOMA
Availability: InStock
Rating: 5 (1 reviews)

DOMA square carbide indexable inserts are manufactured from high-quality sintered tungsten carbide and precision-ground for stable, high-efficiency cutting performance. The inserts adopt a curved-edge design with multiple radius options including R150, R100, R50, etc., suitable for various cutterheads and tool systems. They are widely used on woodworking cutterheads from brands such as Leitz, Leuco, The indexable design significantly extends tool life—up to 150% longer compared with traditional steel blades—while maintaining consistent machining quality under heavy-duty and continuous production environments.

INQUIRY PDF Format

Description

Outline

Product Name	Woodworking Carbide Indexable Insert
Brand	DOMA
Manufacturer	CHENGDU DOMA CARBIDE TOOLS CO.,LTD.
Product Dimensions	Standard or Customized
Product Material	Solid Tungsten Carbide By Sinter-HIP
Tolerance	According to customer requirements
OEM	Available
Sample	Available

Specification

DOMA CARBIDE INDEXABLE INSERT TYPE SPECIFICATION LIST

Metric Size Standard

L	W	r	T	a
mm	mm	r	mm	a
15	15	50	2.5	30
15	15	100	2.5	30
15	15	115	2.5	30
15	15	150	2.5	30

♦ Doma carbide tools only show the commonly used carbide indexable insert specifications, if you want more other specification of carbide indexable insert, you are welcome to contact us. At the same time, Doma accepts drawing or sample customization.

Applications

1.Suitable for woodworking cutterheads, tool bodies, and combination cutter systems

2.Commonly used on cutterheads from Leitz, Leuco and other mainstream tooling manufacturers

3.Designed for profiling, slotting, trimming, and general-purpose wood machining

4.Applicable to hardwood, softwood, MDF, particleboard, laminate, plywood, and engineered wood

5.Ideal for industrial furniture production, panel processing lines, and precision woodworking operations

Advantages

1.Sintered Tungsten Carbide Construction
Ensures high hardness, wear resistance, and long-term stability under high-speed cutting conditions.

2.Precision-Ground Curve Radius (R50/R100/R150)
Produces smooth profiles and consistent surface finish across various cutterhead geometries.

3.Indexable Design
Each edge can be rotated for reuse, extending service life by up to 150% compared to conventional steel knives.

4.High Hardness & Toughness Balance
Well-established performance proven through long-term industrial use, suitable for demanding woodworking environments.

5.Stable Performance in Composite Woodworking Applications
Effectively handles the challenges of MDF, particleboard and other abrasive materials.

6.Wide Compatibility
Designed to fit numerous standard cutterhead systems used in furniture and panel-processing industries.
